广义不等式问题

本节说明障碍方法如何扩展到广义不等式问题。考虑问题

$$\begin{array}{rl}\mathrm{minimize}& f_0(x)\\ \mathrm{subject}\mathrm{to}& f_i(x){⪯}_{K_i}0,i=1,\cdots ,m\\ & Ax=b\end{array}$$

其中 $f_0:{\mathbf{R}}^n\to \mathbf{R}$ 凸，$f_i:{\mathbf{R}}^n\to {\mathbf{R}}^{k_i}$ 是 $K_i$-凸的，$K_i\subseteq {\mathbf{R}}^{k_i}$ 是正常锥。与标量情形一样，假设 $f_i$ 二阶连续可微，$A\in {\mathbf{R}}^{p\times n}$ 且 $\mathrm{rank}A=p$，问题可解。

该问题的 KKT 条件为

$$\begin{array}{rl}& A{x}^{\star }=b\\ & f_i(x^{\star }){⪯}_{K_i}0,i=1,\cdots ,m\\ & {\lambda }_i^{\star }{⪰}_{K_i^{\ast }}0,i=1,\cdots ,m\\ & \mathrm{\nabla }{f}_0(x^{\star })+\sum _{i=1}^{m}D{f}_i(x^{\star }{)}^{\mathrm{\top }}{\lambda }_i^{\star }+A^{\mathrm{\top }}{\nu }^{\star }=0\\ & {\lambda }_i^{\star \mathrm{\top }}{f}_i(x^{\star })=0,i=1,\cdots ,m\end{array}$$

其中 $D{f}_i(x^{\star })\in {\mathbf{R}}^{k_i\times n}$ 是 $f_i$ 在 $x^{\star }$ 处的导数。假设问题严格可行，则 KKT 条件是 $x^{\star }$ 最优性的充要条件。

该方法的展开过程与标量约束的情形完全平行：一旦发展出适用于一般正常锥的对数函数的推广，就可以定义问题的对数障碍函数；从那一点开始，后面的展开与标量情形本质相同。特别地，中心路径、障碍方法与复杂度分析都非常相似。

对数障碍与中心路径

正常锥的广义对数

我们首先定义正常锥 $K\subseteq {\mathbf{R}}^q$ 的对数 $\log x$ 的类似物。称 $\psi :{\mathbf{R}}^q\to \mathbf{R}$ 为 $K$ 的广义对数​（generalized logarithm），如果：

• $\psi$ 是凹的、闭的、二阶连续可微的，$\mathrm{dom}\psi =\mathrm{int}K$，且对 $y\in \mathrm{int}K$ 有 ${\mathrm{\nabla }}^2\psi (y)\prec 0$；
• 存在常数 $\theta >0$，使得对所有 $y{\succ }_{K}0$ 和所有 $s>0$，有 $\psi (sy)=\psi (y)+\theta \log s$。

换言之，$\psi$ 沿 $K$ 内的任何射线表现得像对数。我们称常数 $\theta$ 为 $\psi$ 的次数​（degree）（因为 $\exp \psi$ 是 $\theta$ 次齐次函数）。注意广义对数在相差一个加性常数的意义下不唯一：若 $\psi$ 是 $K$ 的广义对数，则 $\psi +a$（$a\in \mathbf{R}$）也是。普通对数当然是 ${\mathbf{R}}_{+}$ 的广义对数。

我们将使用任何广义对数都满足的两个性质：若 $y{\succ }_{K}0$，则

$$\mathrm{\nabla }\psi (y){\succ }_{K^{\ast }}0$$

（这意味着 $\psi$ 是 $K$-递增的），以及

$$y^{\mathrm{\top }}\mathrm{\nabla }\psi (y)=\theta$$

第二个性质对 $\psi (sy)=\psi (y)+\theta \log s$ 关于 $s$ 求导立即可得；第一个性质的证明见教材习题 11.15。

例子：非负象限​。$\psi (x)=\sum _{i=1}^n\log x_i$ 是 ${\mathbf{R}}_{+}^n$ 的广义对数，次数为 $n$。对 $x\succ 0$，$\mathrm{\nabla }\psi (x)=(1/x_1,\cdots ,1/x_n)$，故 $\mathrm{\nabla }\psi (x)\succ 0$，且 $x^{\mathrm{\top }}\mathrm{\nabla }\psi (x)=n$。

例子：二阶锥​。函数

$$\psi (x)=\log (x_{n+1}^2-\sum _{i=1}^n{x}_i^2)$$

是二阶锥

$$K=\{x\in {\mathbf{R}}^{n+1}|{\left(\sum _{i=1}^n{x}_i^2\right)}^{1/2}⩽x_{n+1}\}$$

的广义对数，次数为 2。$\psi$ 在 $\mathrm{int}K$ 内点 $x$ 处的梯度为

$$\frac{\partial \psi (x)}{\partial x_j}=\frac{-2x_j}{x_{n+1}^2-\sum _{i=1}^n{x}_i^2}(j=1,\cdots ,n),\frac{\partial \psi (x)}{\partial x_{n+1}}=\frac{2x_{n+1}}{x_{n+1}^2-\sum _{i=1}^n{x}_i^2}$$

恒等式 $\mathrm{\nabla }\psi (x)\in \mathrm{int}{K}^{\ast }=\mathrm{int}K$ 与 $x^{\mathrm{\top }}\mathrm{\nabla }\psi (x)=2$ 容易验证。

例子：半正定锥​。$\psi (X)=\log detX$ 是 ${\mathbf{S}}_{+}^p$ 的广义对数。次数为 $p$，因为 $\log det(sX)=\log detX+p\log s$（$s>0$）。$\psi$ 在 $X\in {\mathbf{S}}_{++}^p$ 处的梯度为 $\mathrm{\nabla }\psi (X)=X^{-1}$，因此 $\mathrm{\nabla }\psi (X)=X^{-1}\succ 0$，且 $X$ 与 $\mathrm{\nabla }\psi (X)$ 的内积为 $\mathrm{tr}(X{X}^{-1})=p$。

广义不等式的对数障碍函数

回到广义不等式问题。设 ${\psi }_1,\cdots ,{\psi }_m$ 分别是锥 $K_1,\cdots ,K_m$ 的广义对数，次数为 ${\theta }_1,\cdots ,{\theta }_m$。定义问题的对数障碍函数为

$$\varphi (x)=-\sum _{i=1}^m{\psi }_i(-f_i(x)),\mathrm{dom}\varphi =\{x\mid f_i(x){\prec }_{K_i}0,i=1,\cdots ,m\}$$

$\varphi$ 的凸性来自：${\psi }_i$ 是 $K_i$-递增的，而 $f_i$ 是 $K_i$-凸的（见凸函数一章的复合规则）。

中心路径

下一步定义问题的中心路径。定义中心点 $x^{\star }(t)$（$t⩾0$）为 $t{f}_0+\varphi$ 在约束 $Ax=b$ 下的极小点，即问题

$$\mathrm{minimize}t{f}_0(x)-\sum _{i=1}^m{\psi }_i(-f_i(x))\mathrm{subject}\mathrm{to}Ax=b$$

的解（假设极小点存在且唯一）。中心点由最优性条件

$$t\mathrm{\nabla }{f}_0(x)+\mathrm{\nabla }\varphi (x)+A^{\mathrm{\top }}\nu =t\mathrm{\nabla }{f}_0(x)+\sum _{i=1}^{m}D{f}_i(x{)}^{\mathrm{\top }}\mathrm{\nabla }{\psi }_i(-f_i(x))+A^{\mathrm{\top }}\nu =0$$

刻画（对某个 $\nu \in {\mathbf{R}}^p$，$D{f}_i(x)$ 为 $f_i$ 在 $x$ 处的导数）。

中心路径上的对偶点

与标量情形一样，中心路径上的点给出原问题的对偶可行点。对 $i=1,\cdots ,m$，定义

$${\lambda }_i^{\star }(t)=\frac{1}{t}\mathrm{\nabla }{\psi }_i(-f_i(x^{\star }(t)))$$

并令 ${\nu }^{\star }(t)=\nu /t$（$\nu$ 为中心性条件中的对偶变量）。可以证明 ${\lambda }_1^{\star }(t),\cdots ,{\lambda }_m^{\star }(t)$ 连同 ${\nu }^{\star }(t)$ 对原问题对偶可行。

首先，由广义对数的单调性性质，${\lambda }_i^{\star }(t){\succ }_{K_i^{\ast }}0$。其次，由中心性条件可知 Lagrange 函数

$$L(x,{\lambda }^{\star }(t),{\nu }^{\star }(t))=f_0(x)+\sum _{i=1}^m{\lambda }_i^{\star }(t{)}^{\mathrm{\top }}{f}_i(x)+{\nu }^{\star }(t{)}^{\mathrm{\top }}(Ax-b)$$

在 $x=x^{\star }(t)$ 处取极小，因此对偶函数值为

$$g({\lambda }^{\star }(t),{\nu }^{\star }(t))=f_0(x^{\star }(t))+\sum _{i=1}^m{\lambda }_i^{\star }(t{)}^{\mathrm{\top }}{f}_i(x^{\star }(t))+{\nu }^{\star }(t{)}^{\mathrm{\top }}(A{x}^{\star }(t)-b)=f_0(x^{\star }(t))-\frac{1}{t}\sum _{i=1}^m{\theta }_i$$

最后一行利用了 $y^{\mathrm{\top }}\mathrm{\nabla }{\psi }_i(y)={\theta }_i$（$y{\succ }_{K_i}0$），从而

$${\lambda }_i^{\star }(t{)}^{\mathrm{\top }}{f}_i(x^{\star }(t))=-{\theta }_i/t,i=1,\cdots ,m$$

于是若定义

$$\theta =\sum _{i=1}^m{\theta }_i$$

则原始可行点 $x^{\star }(t)$ 与对偶可行点 $({\lambda }^{\star }(t),{\nu }^{\star }(t))$ 的对偶间隙为 $\theta /t$。这与标量情形一样，只是用 $\theta$（各锥广义对数的次数之和）代替了 $m$（不等式个数）。

例子：二阶锥规划​。考虑变量 $x\in {\mathbf{R}}^n$ 的 SOCP：

$$\mathrm{minimize}{f}^{\mathrm{\top }}x\mathrm{subject}\mathrm{to}\parallel A_{i}x+b_i{\parallel }_2⩽c_i^{\mathrm{\top }}x+d_i,i=1,\cdots ,m$$

（$A_i\in {\mathbf{R}}^{n_i\times n}$）。如上所述，$\psi (y)=\log (y_{p+1}^2-\sum _{i=1}^p{y}_i^2)$ 是 ${\mathbf{R}}^{p+1}$ 中二阶锥的广义对数，次数为 2，因此相应的对数障碍函数为

$$\varphi (x)=-\sum _{i=1}^m\log ((c_i^{\mathrm{\top }}x+d_i{)}^2-\parallel A_{i}x+b_i{\parallel }_2^2),\mathrm{dom}\varphi =\{x\mid \parallel A_{i}x+b_i{\parallel }_2<c_i^{\mathrm{\top }}x+d_i,i=1,\cdots ,m\}$$

中心路径上的最优性条件为 $tf+\mathrm{\nabla }\varphi (x^{\star }(t))=0$，由此可得

$$z_i^{\star }(t)=-\frac{2}{t{\alpha }_i}(A_i{x}^{\star }(t)+b_i),w_i^{\star }(t)=\frac{2}{t{\alpha }_i}(c_i^{\mathrm{\top }}{x}^{\star }(t)+d_i),i=1,\cdots ,m$$

（其中 ${\alpha }_i=(c_i^{\mathrm{\top }}{x}^{\star }(t)+d_i{)}^2-\parallel A_i{x}^{\star }(t)+b_i{\parallel }_2^2$）在对偶问题

$$\mathrm{maximize}-\sum _{i=1}^m(b_i^{\mathrm{\top }}{z}_i+d_i{w}_i)\mathrm{subject}\mathrm{to}\sum _{i=1}^m(A_i^{\mathrm{\top }}{z}_i+c_i{w}_i)=f,\parallel z_i{\parallel }_2⩽w_i,i=1,\cdots ,m$$

中严格可行。与 $x^{\star }(t)$ 和 $(z^{\star }(t),w^{\star }(t))$ 相关联的对偶间隙为

$$\sum _{i=1}^m((A_i{x}^{\star }(t)+b_i{)}^{\mathrm{\top }}{z}_i^{\star }(t)+(c_i^{\mathrm{\top }}{x}^{\star }(t)+d_i)w_i^{\star }(t))=\frac{2m}{t}$$

与一般公式 $\theta /t$ 一致（${\theta }_i=2$）。

例子：不等式形式的半定规划​。考虑变量 $x\in {\mathbf{R}}^n$ 的 SDP：

$$\mathrm{minimize}{c}^{\mathrm{\top }}x\mathrm{subject}\mathrm{to}F(x)=x_1{F}_1+\cdots +x_n{F}_n+G⪯0$$

（$G,F_1,\cdots ,F_n\in {\mathbf{S}}^p$）。其对偶问题为

$$\mathrm{maximize}\mathrm{tr}(GZ)\mathrm{subject}\mathrm{to}\mathrm{tr}(F_{i}Z)+c_i=0,i=1,\cdots ,n,Z⪰0$$

用 $\log detX$ 作为半正定锥的广义对数，原始问题的对数障碍函数为 $\varphi (x)=\log det(-F(x{)}^{-1})$（$\mathrm{dom}\varphi =\{x\mid F(x)\prec 0\}$）。对严格可行的 $x$，$\varphi$ 的梯度为

$$\frac{\partial \varphi (x)}{\partial x_i}=\mathrm{tr}(-F(x{)}^{-1}{F}_i),i=1,\cdots ,n$$

由此得到刻画中心点的最优性条件：

$$t{c}_i+\mathrm{tr}(-F(x^{\star }(t){)}^{-1}{F}_i)=0,i=1,\cdots ,n$$

因此矩阵

$$Z^{\star }(t)=\frac{1}{t}(-F(x^{\star }(t)){)}^{-1}$$

严格对偶可行，与 $x^{\star }(t)$ 和 $Z^{\star }(t)$ 相关联的对偶间隙为 $p/t$。

障碍方法

我们已经看到中心路径的关键性质如何推广到广义不等式问题：

• 计算中心路径上的一点即在等式约束下极小化一个二阶可微的凸函数（可以用 Newton 方法完成）。
• 与中心点 $x^{\star }(t)$ 相关联的对偶可行点 $({\lambda }^{\star }(t),{\nu }^{\star }(t))$ 的对偶间隙为 $\theta /t$。特别地，$x^{\star }(t)$ 至多 $\theta /t$-次优。

这意味着可以按完全相同的方式（与标量情形的障碍方法一样）求解广义不等式问题。从 $x^{\star }(t^{(0)})$ 出发计算对偶间隙为 $ϵ$ 的中心点所需的外层迭代（中心点步）次数等于

$$\lceil \frac{\log (\theta /(t^{(0)}ϵ))}{\log \mu }\rceil$$

外加一次初始中心点步。与标量情形结果的唯一差别是 $\theta$ 代替了 $m$。

阶段 I 与可行性问题​：阶段 I 方法可以直接推广到广义不等式问题。给定 $K_i$-正的向量 $e_i{\succ }_{K_i}0$，为判定等式与广义不等式组

$$f_1(x){⪯}_{K_1}0,\cdots ,f_L(x){⪯}_{K_m}0,Ax=b$$

的可行性，求解问题

$$\mathrm{minimize}s\mathrm{subject}\mathrm{to}{f}_i(x){⪯}_{K_i}s{e}_i,i=1,\cdots ,m,Ax=b$$

变量为 $x$ 与 $s\in \mathbf{R}$。其最优值 ${\overline{p}}^{\star }$ 判定等式与广义不等式组的可行性，方式与普通不等式完全一样。当 ${\overline{p}}^{\star }$ 为正时，任何目标为正的对偶可行点都给出证明该等式与广义不等式组不可行的 alternative（备选解）。

例子

一个小型 SOCP

求解 SOCP

$$\mathrm{minimize}{f}^{\mathrm{\top }}x\mathrm{subject}\mathrm{to}\parallel A_{i}x+b_i{\parallel }_2⩽c_i^{\mathrm{\top }}x+d_i,i=1,\cdots ,m$$

其中 $x\in {\mathbf{R}}^{50}$，$m=50$，$A_i\in {\mathbf{R}}^{5\times 50}$。问题实例随机生成，严格原始与对偶可行，$p^{\star }=1$。初始点在中心路径上，对偶间隙 100。

用障碍函数 $\varphi (x)=-\sum _{i=1}^m\log ((c_i^{\mathrm{\top }}x+d_i{)}^2-\parallel A_{i}x+b_i{\parallel }_2^2)$ 求解；中心点问题用 Newton 方法（参数与前面例子相同：$\alpha =0.01$，$\beta =0.5$，终止准则 $\lambda (x{)}^2/2⩽{10}^{-5}$）。对偶间隙随累计 Newton 步数的曲线与 LP、GP 的非常相似：每次中心点步所需 Newton 步数近似为常数，对偶间隙近似线性收敛。$\mu$ 至少为 10 左右时，$\mu$ 的取值对总步数影响不大；与 LP 和 GP 一样，$\mu$ 取 10 到 100 的合理值时总 Newton 步数约 30。

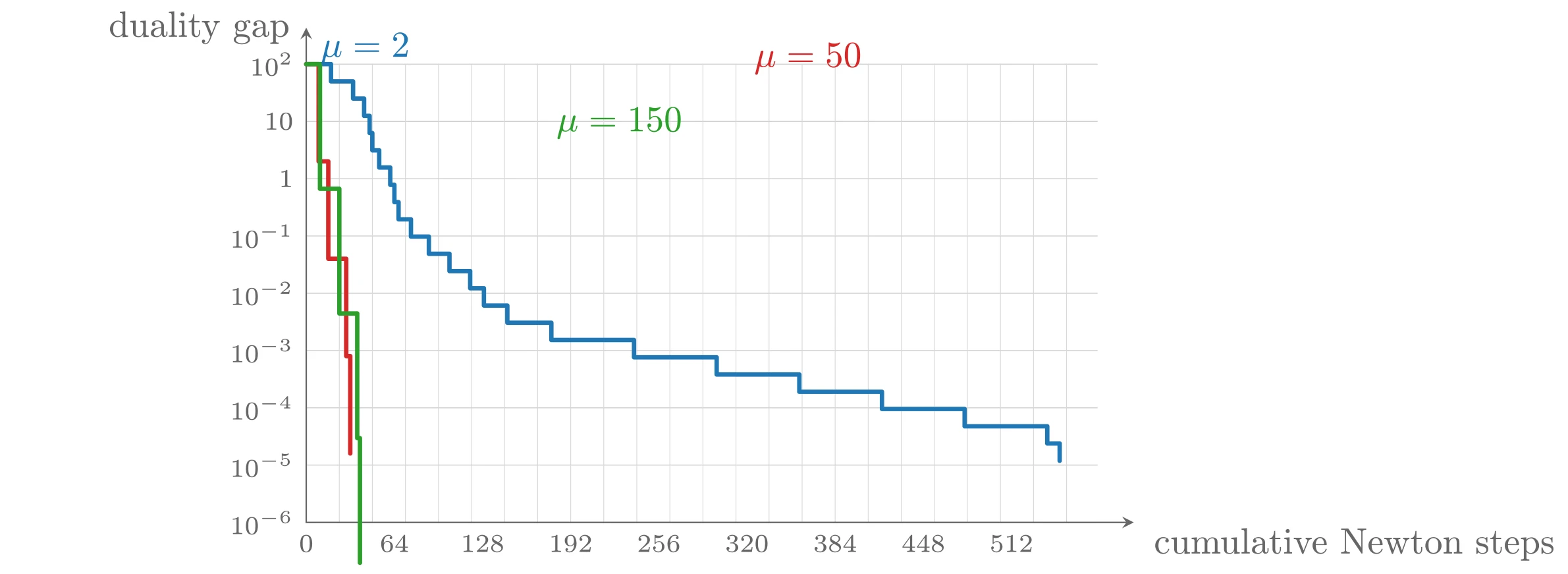

上图由下面的 TikZ 代码编译而来：

  \definecolor{cblue}{RGB}{31,119,180}
  \definecolor{cred}{RGB}{214,39,40}
  \definecolor{cgreen}{RGB}{44,160,44}
  \definecolor{corange}{RGB}{255,127,14}
  \definecolor{cpurple}{RGB}{148,103,189}
  \definecolor{cbrown}{RGB}{140,86,75}
  \definecolor{cpink}{RGB}{227,119,194}
  \definecolor{cgray}{RGB}{127,127,127}
\begin{tikzpicture}[x=1cm,y=1cm,>=stealth,line cap=round,line join=round]
  \draw[color=black!25,very thin] (0.0000,0.0000) -- (7.6000,0.0000) (0.0000,0.5500) -- (7.6000,0.5500) (0.0000,1.1000) -- (7.6000,1.1000) (0.0000,1.6500) -- (7.6000,1.6500) (0.0000,2.2000) -- (7.6000,2.2000) (0.0000,2.7500) -- (7.6000,2.7500) (0.0000,3.3000) -- (7.6000,3.3000) (0.0000,3.8500) -- (7.6000,3.8500) (0.0000,4.4000) -- (7.6000,4.4000);
  \draw[color=black!15,very thin] (0.0000,0.0000) -- (0.0000,4.4000) (0.3176,0.0000) -- (0.3176,4.4000) (0.6352,0.0000) -- (0.6352,4.4000) (0.9527,0.0000) -- (0.9527,4.4000) (1.2703,0.0000) -- (1.2703,4.4000) (1.5879,0.0000) -- (1.5879,4.4000) (1.9055,0.0000) -- (1.9055,4.4000) (2.2230,0.0000) -- (2.2230,4.4000) (2.5406,0.0000) -- (2.5406,4.4000) (2.8582,0.0000) -- (2.8582,4.4000) (3.1758,0.0000) -- (3.1758,4.4000) (3.4933,0.0000) -- (3.4933,4.4000) (3.8109,0.0000) -- (3.8109,4.4000) (4.1285,0.0000) -- (4.1285,4.4000) (4.4461,0.0000) -- (4.4461,4.4000) (4.7636,0.0000) -- (4.7636,4.4000) (5.0812,0.0000) -- (5.0812,4.4000) (5.3988,0.0000) -- (5.3988,4.4000) (5.7164,0.0000) -- (5.7164,4.4000) (6.0340,0.0000) -- (6.0340,4.4000) (6.3515,0.0000) -- (6.3515,4.4000) (6.6691,0.0000) -- (6.6691,4.4000) (6.9867,0.0000) -- (6.9867,4.4000) (7.3043,0.0000) -- (7.3043,4.4000);
  \draw[->,color=black!60] (0.0000,0.0000) -- (7.9500,0.0000) node[anchor=west,xshift=2pt,yshift=-6pt] {cumulative Newton steps};
  \draw[->,color=black!60] (0.0000,0.0000) -- (0.0000,4.7500) node[left=1pt] {duality gap};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,0.0000) {$10^{-6}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,0.5500) {$10^{-5}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,1.1000) {$10^{-4}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,1.6500) {$10^{-3}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,2.2000) {$10^{-2}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,2.7500) {$10^{-1}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,3.3000) {1};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,3.8500) {$10$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,4.4000) {$10^{2}$};
  \node[below,font=\scriptsize,color=black!60] at (0.0000,0.0000) {0};
  \node[below,font=\scriptsize,color=black!60] at (0.8469,0.0000) {64};
  \node[below,font=\scriptsize,color=black!60] at (1.6937,0.0000) {128};
  \node[below,font=\scriptsize,color=black!60] at (2.5406,0.0000) {192};
  \node[below,font=\scriptsize,color=black!60] at (3.3875,0.0000) {256};
  \node[below,font=\scriptsize,color=black!60] at (4.2344,0.0000) {320};
  \node[below,font=\scriptsize,color=black!60] at (5.0812,0.0000) {384};
  \node[below,font=\scriptsize,color=black!60] at (5.9281,0.0000) {448};
  \node[below,font=\scriptsize,color=black!60] at (6.7750,0.0000) {512};
  \draw[cblue,very thick] plot coordinates {(0.000,4.400) (0.238,4.400) (0.238,4.234) (0.450,4.234) (0.450,4.069) (0.556,4.069) (0.556,3.903) (0.609,3.903) (0.609,3.738) (0.635,3.738) (0.635,3.572) (0.701,3.572) (0.701,3.407) (0.807,3.407) (0.807,3.241) (0.847,3.241) (0.847,3.075) (0.887,3.075) (0.887,2.910) (1.006,2.910) (1.006,2.744) (1.178,2.744) (1.178,2.579) (1.376,2.579) (1.376,2.413) (1.575,2.413) (1.575,2.248) (1.707,2.248) (1.707,2.082) (1.932,2.082) (1.932,1.917) (2.355,1.917) (2.355,1.751) (3.149,1.751) (3.149,1.585) (3.943,1.585) (3.943,1.420) (4.737,1.420) (4.737,1.254) (5.531,1.254) (5.531,1.089) (6.325,1.089) (6.325,0.923) (7.119,0.923) (7.119,0.758) (7.238,0.758) (7.238,0.592)};
  \draw[cred,very thick] plot coordinates {(0.000,4.400) (0.119,4.400) (0.119,3.466) (0.212,3.466) (0.212,2.531) (0.384,2.531) (0.384,1.597) (0.423,1.597) (0.423,0.662)};
  \draw[cgreen,very thick] plot coordinates {(0.000,4.400) (0.132,4.400) (0.132,3.203) (0.318,3.203) (0.318,2.006) (0.490,2.006) (0.490,0.809) (0.516,0.809) (0.516,-0.387)};
  \node[anchor=south west,color=cblue] at (0.0132,4.2780) {$\mu=2$};
  \node[anchor=south west,color=cred] at (4.1800,4.1811) {$\mu=50$};
  \node[anchor=south west,color=cgreen] at (2.2800,3.5624) {$\mu=150$};
\end{tikzpicture}

上图由下面的 TikZ 代码编译而来：

  \definecolor{cblue}{RGB}{31,119,180}
  \definecolor{cred}{RGB}{214,39,40}
  \definecolor{cgreen}{RGB}{44,160,44}
  \definecolor{corange}{RGB}{255,127,14}
  \definecolor{cpurple}{RGB}{148,103,189}
  \definecolor{cbrown}{RGB}{140,86,75}
  \definecolor{cpink}{RGB}{227,119,194}
  \definecolor{cgray}{RGB}{127,127,127}
\begin{tikzpicture}[x=1cm,y=1cm,>=stealth,line cap=round,line join=round]
  \draw[color=black!12,very thin] (0.0000,0) -- (0.0000,4.4) (0.7589,0) -- (0.7589,4.4) (2.1200,0) -- (2.1200,4.4) (3.1497,0) -- (3.1497,4.4) (4.1794,0) -- (4.1794,4.4) (5.5406,0) -- (5.5406,4.4) (6.5703,0) -- (6.5703,4.4) (7.6000,0) -- (7.6000,4.4) (0,0.0603) -- (7.6,0.0603) (0,0.1207) -- (7.6,0.1207) (0,0.1810) -- (7.6,0.1810) (0,0.2414) -- (7.6,0.2414) (0,0.3017) -- (7.6,0.3017) (0,0.3621) -- (7.6,0.3621) (0,0.4224) -- (7.6,0.4224) (0,0.4828) -- (7.6,0.4828) (0,0.5431) -- (7.6,0.5431) (0,0.6035) -- (7.6,0.6035) (0,0.6638) -- (7.6,0.6638) (0,0.7242) -- (7.6,0.7242) (0,0.7845) -- (7.6,0.7845) (0,0.8449) -- (7.6,0.8449) (0,0.9052) -- (7.6,0.9052) (0,0.9656) -- (7.6,0.9656) (0,1.0259) -- (7.6,1.0259) (0,1.0863) -- (7.6,1.0863) (0,1.1466) -- (7.6,1.1466) (0,1.2070) -- (7.6,1.2070) (0,1.2673) -- (7.6,1.2673) (0,1.3277) -- (7.6,1.3277) (0,1.3880) -- (7.6,1.3880) (0,1.4484) -- (7.6,1.4484) (0,1.5087) -- (7.6,1.5087) (0,1.5691) -- (7.6,1.5691) (0,1.6294) -- (7.6,1.6294) (0,1.6898) -- (7.6,1.6898) (0,1.7501) -- (7.6,1.7501) (0,1.8105) -- (7.6,1.8105) (0,1.8708) -- (7.6,1.8708) (0,1.9311) -- (7.6,1.9311) (0,1.9915) -- (7.6,1.9915) (0,2.0518) -- (7.6,2.0518) (0,2.1122) -- (7.6,2.1122) (0,2.1725) -- (7.6,2.1725) (0,2.2329) -- (7.6,2.2329) (0,2.2932) -- (7.6,2.2932) (0,2.3536) -- (7.6,2.3536) (0,2.4139) -- (7.6,2.4139) (0,2.4743) -- (7.6,2.4743) (0,2.5346) -- (7.6,2.5346) (0,2.5950) -- (7.6,2.5950) (0,2.6553) -- (7.6,2.6553) (0,2.7157) -- (7.6,2.7157) (0,2.7760) -- (7.6,2.7760) (0,2.8364) -- (7.6,2.8364) (0,2.8967) -- (7.6,2.8967) (0,2.9571) -- (7.6,2.9571) (0,3.0174) -- (7.6,3.0174) (0,3.0778) -- (7.6,3.0778) (0,3.1381) -- (7.6,3.1381) (0,3.1985) -- (7.6,3.1985) (0,3.2588) -- (7.6,3.2588) (0,3.3192) -- (7.6,3.3192) (0,3.3795) -- (7.6,3.3795) (0,3.4399) -- (7.6,3.4399) (0,3.5002) -- (7.6,3.5002) (0,3.5606) -- (7.6,3.5606) (0,3.6209) -- (7.6,3.6209) (0,3.6813) -- (7.6,3.6813) (0,3.7416) -- (7.6,3.7416) (0,3.8019) -- (7.6,3.8019) (0,3.8623) -- (7.6,3.8623) (0,3.9226) -- (7.6,3.9226) (0,3.9830) -- (7.6,3.9830) (0,4.0433) -- (7.6,4.0433) (0,4.1037) -- (7.6,4.1037) (0,4.1640) -- (7.6,4.1640) (0,4.2244) -- (7.6,4.2244) (0,4.2847) -- (7.6,4.2847) (0,4.3451) -- (7.6,4.3451) ;
  \draw[->,color=black!60] (0,0) -- (7.8999999999999995,0) node[below] {$\mu$};
  \draw[->,color=black!60] (0,0) -- (0,4.7) node[left] {total Newton steps};
  \draw[cblue,very thick] plot [smooth] coordinates {(0.000,3.826) (0.317,1.744) (0.633,1.382) (0.950,1.310) (1.267,0.941) (1.583,0.960) (1.900,0.422) (2.217,0.501) (2.533,0.682) (2.850,0.344) (3.167,0.211) (3.483,0.235) (3.800,0.314) (4.117,0.193) (4.433,0.199) (4.750,0.193) (5.067,0.519) (5.383,0.567) (5.700,0.163) (6.017,0.266) (6.333,0.175) (6.650,0.501) (6.967,0.139) (7.283,0.217) (7.600,0.199)};
  \fill[cblue] (0.000,3.826) circle (1.5pt);
  \fill[cblue] (0.317,1.744) circle (1.5pt);
  \fill[cblue] (0.633,1.382) circle (1.5pt);
  \fill[cblue] (0.950,1.310) circle (1.5pt);
  \fill[cblue] (1.267,0.941) circle (1.5pt);
  \fill[cblue] (1.583,0.960) circle (1.5pt);
  \fill[cblue] (1.900,0.422) circle (1.5pt);
  \fill[cblue] (2.217,0.501) circle (1.5pt);
  \fill[cblue] (2.533,0.682) circle (1.5pt);
  \fill[cblue] (2.850,0.344) circle (1.5pt);
  \fill[cblue] (3.167,0.211) circle (1.5pt);
  \fill[cblue] (3.483,0.235) circle (1.5pt);
  \fill[cblue] (3.800,0.314) circle (1.5pt);
  \fill[cblue] (4.117,0.193) circle (1.5pt);
  \fill[cblue] (4.433,0.199) circle (1.5pt);
  \fill[cblue] (4.750,0.193) circle (1.5pt);
  \fill[cblue] (5.067,0.519) circle (1.5pt);
  \fill[cblue] (5.383,0.567) circle (1.5pt);
  \fill[cblue] (5.700,0.163) circle (1.5pt);
  \fill[cblue] (6.017,0.266) circle (1.5pt);
  \fill[cblue] (6.333,0.175) circle (1.5pt);
  \fill[cblue] (6.650,0.501) circle (1.5pt);
  \fill[cblue] (6.967,0.139) circle (1.5pt);
  \fill[cblue] (7.283,0.217) circle (1.5pt);
  \fill[cblue] (7.600,0.199) circle (1.5pt);
  \node[below,color=black!60] at (0.0000,0) {1.2};
  \node[below,color=black!60] at (0.7589,0) {2};
  \node[below,color=black!60] at (2.1200,0) {5};
  \node[below,color=black!60] at (3.1497,0) {10};
  \node[below,color=black!60] at (4.1794,0) {20};
  \node[below,color=black!60] at (5.5406,0) {50};
  \node[below,color=black!60] at (6.5703,0) {100};
  \node[below,color=black!60] at (7.6000,0) {200};
  \node[left,color=black!60] at (0,0.0603) {10};
  \node[left,color=black!60] at (0,0.1810) {30};
  \node[left,color=black!60] at (0,0.3017) {50};
  \node[left,color=black!60] at (0,0.4224) {70};
  \node[left,color=black!60] at (0,0.5431) {90};
  \node[left,color=black!60] at (0,0.6638) {110};
  \node[left,color=black!60] at (0,0.7845) {130};
  \node[left,color=black!60] at (0,0.9052) {150};
  \node[left,color=black!60] at (0,1.0259) {170};
  \node[left,color=black!60] at (0,1.1466) {190};
  \node[left,color=black!60] at (0,1.2673) {210};
  \node[left,color=black!60] at (0,1.3880) {230};
  \node[left,color=black!60] at (0,1.5087) {250};
  \node[left,color=black!60] at (0,1.6294) {270};
  \node[left,color=black!60] at (0,1.7501) {290};
  \node[left,color=black!60] at (0,1.8708) {310};
  \node[left,color=black!60] at (0,1.9915) {330};
  \node[left,color=black!60] at (0,2.1122) {350};
  \node[left,color=black!60] at (0,2.2329) {370};
  \node[left,color=black!60] at (0,2.3536) {390};
  \node[left,color=black!60] at (0,2.4743) {410};
  \node[left,color=black!60] at (0,2.5950) {430};
  \node[left,color=black!60] at (0,2.7157) {450};
  \node[left,color=black!60] at (0,2.8364) {470};
  \node[left,color=black!60] at (0,2.9571) {490};
  \node[left,color=black!60] at (0,3.0778) {510};
  \node[left,color=black!60] at (0,3.1985) {530};
  \node[left,color=black!60] at (0,3.3192) {550};
  \node[left,color=black!60] at (0,3.4399) {570};
  \node[left,color=black!60] at (0,3.5606) {590};
  \node[left,color=black!60] at (0,3.6813) {610};
  \node[left,color=black!60] at (0,3.8019) {630};
  \node[left,color=black!60] at (0,3.9226) {650};
  \node[left,color=black!60] at (0,4.0433) {670};
  \node[left,color=black!60] at (0,4.1640) {690};
  \node[left,color=black!60] at (0,4.2847) {710};
\end{tikzpicture}

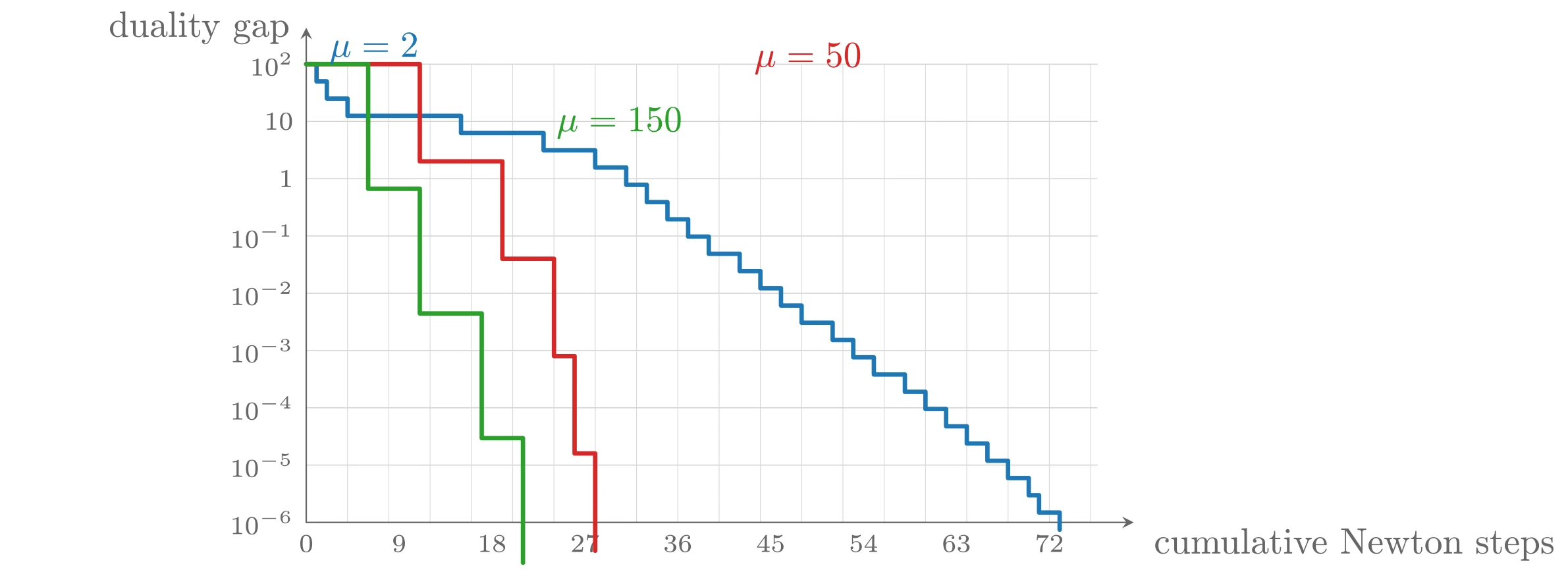

一个小型 SDP

下一个例子是 SDP

$$\mathrm{minimize}{c}^{\mathrm{\top }}x\mathrm{subject}\mathrm{to}\sum _{i=1}^n{x}_i{F}_i+G⪯0$$

变量 $x\in {\mathbf{R}}^{100}$，$F_i\in {\mathbf{S}}^{100}$，$G\in {\mathbf{S}}^{100}$（实例随机生成，严格原始与对偶可行，$p^{\star }=1$）。初始点在中心路径上，对偶间隙 100。应用带对数障碍函数

$$\varphi (x)=-\log det(-\sum _{i=1}^n{x}_i{F}_i-G)$$

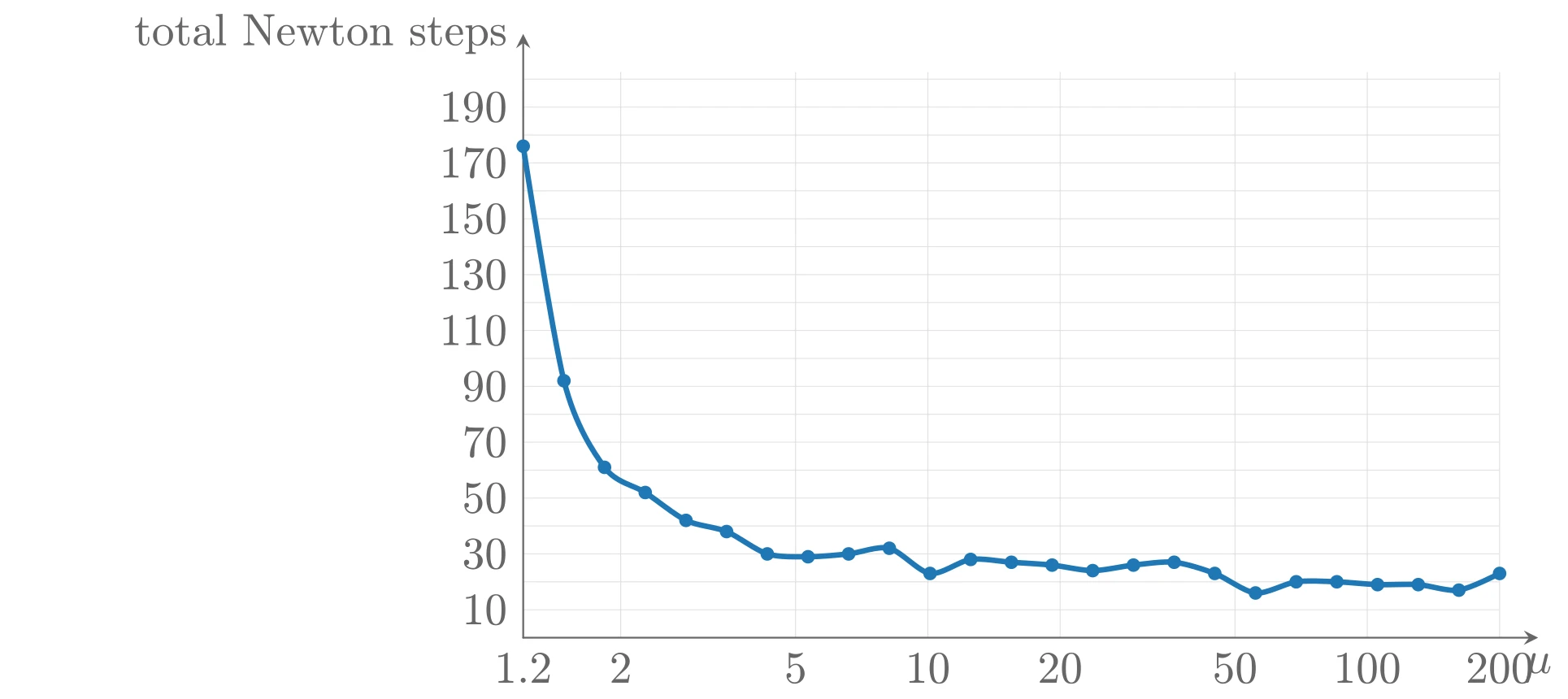

的障碍方法。$\mu =2,50,150$ 三种取值下的进展曲线与 LP、GP、SOCP 的非常相似；同样，只要 $\mu$ 不太小，参数 $\mu$ 对效率的影响就很小。

上图由下面的 TikZ 代码编译而来：

  \definecolor{cblue}{RGB}{31,119,180}
  \definecolor{cred}{RGB}{214,39,40}
  \definecolor{cgreen}{RGB}{44,160,44}
  \definecolor{corange}{RGB}{255,127,14}
  \definecolor{cpurple}{RGB}{148,103,189}
  \definecolor{cbrown}{RGB}{140,86,75}
  \definecolor{cpink}{RGB}{227,119,194}
  \definecolor{cgray}{RGB}{127,127,127}
\begin{tikzpicture}[x=1cm,y=1cm,>=stealth,line cap=round,line join=round]
  \draw[color=black!25,very thin] (0.0000,0.0000) -- (7.6000,0.0000) (0.0000,0.5500) -- (7.6000,0.5500) (0.0000,1.1000) -- (7.6000,1.1000) (0.0000,1.6500) -- (7.6000,1.6500) (0.0000,2.2000) -- (7.6000,2.2000) (0.0000,2.7500) -- (7.6000,2.7500) (0.0000,3.3000) -- (7.6000,3.3000) (0.0000,3.8500) -- (7.6000,3.8500) (0.0000,4.4000) -- (7.6000,4.4000);
  \draw[color=black!15,very thin] (0.0000,0.0000) -- (0.0000,4.4000) (0.3966,0.0000) -- (0.3966,4.4000) (0.7932,0.0000) -- (0.7932,4.4000) (1.1898,0.0000) -- (1.1898,4.4000) (1.5864,0.0000) -- (1.5864,4.4000) (1.9830,0.0000) -- (1.9830,4.4000) (2.3796,0.0000) -- (2.3796,4.4000) (2.7763,0.0000) -- (2.7763,4.4000) (3.1729,0.0000) -- (3.1729,4.4000) (3.5695,0.0000) -- (3.5695,4.4000) (3.9661,0.0000) -- (3.9661,4.4000) (4.3627,0.0000) -- (4.3627,4.4000) (4.7593,0.0000) -- (4.7593,4.4000) (5.1559,0.0000) -- (5.1559,4.4000) (5.5525,0.0000) -- (5.5525,4.4000) (5.9491,0.0000) -- (5.9491,4.4000) (6.3457,0.0000) -- (6.3457,4.4000) (6.7423,0.0000) -- (6.7423,4.4000) (7.1389,0.0000) -- (7.1389,4.4000) (7.5356,0.0000) -- (7.5356,4.4000);
  \draw[->,color=black!60] (0.0000,0.0000) -- (7.9500,0.0000) node[anchor=west,xshift=2pt,yshift=-6pt] {cumulative Newton steps};
  \draw[->,color=black!60] (0.0000,0.0000) -- (0.0000,4.7500) node[left=1pt] {duality gap};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,0.0000) {$10^{-6}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,0.5500) {$10^{-5}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,1.1000) {$10^{-4}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,1.6500) {$10^{-3}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,2.2000) {$10^{-2}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,2.7500) {$10^{-1}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,3.3000) {1};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,3.8500) {$10$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,4.4000) {$10^{2}$};
  \node[below,font=\scriptsize,color=black!60] at (0.0000,0.0000) {0};
  \node[below,font=\scriptsize,color=black!60] at (0.8924,0.0000) {9};
  \node[below,font=\scriptsize,color=black!60] at (1.7847,0.0000) {18};
  \node[below,font=\scriptsize,color=black!60] at (2.6771,0.0000) {27};
  \node[below,font=\scriptsize,color=black!60] at (3.5695,0.0000) {36};
  \node[below,font=\scriptsize,color=black!60] at (4.4618,0.0000) {45};
  \node[below,font=\scriptsize,color=black!60] at (5.3542,0.0000) {54};
  \node[below,font=\scriptsize,color=black!60] at (6.2466,0.0000) {63};
  \node[below,font=\scriptsize,color=black!60] at (7.1389,0.0000) {72};
  \draw[cblue,very thick] plot coordinates {(0.000,4.400) (0.099,4.400) (0.099,4.234) (0.198,4.234) (0.198,4.069) (0.397,4.069) (0.397,3.903) (1.487,3.903) (1.487,3.738) (2.280,3.738) (2.280,3.572) (2.776,3.572) (2.776,3.407) (3.074,3.407) (3.074,3.241) (3.272,3.241) (3.272,3.075) (3.470,3.075) (3.470,2.910) (3.669,2.910) (3.669,2.744) (3.867,2.744) (3.867,2.579) (4.164,2.579) (4.164,2.413) (4.363,2.413) (4.363,2.248) (4.561,2.248) (4.561,2.082) (4.759,2.082) (4.759,1.917) (5.057,1.917) (5.057,1.751) (5.255,1.751) (5.255,1.585) (5.453,1.585) (5.453,1.420) (5.751,1.420) (5.751,1.254) (5.949,1.254) (5.949,1.089) (6.147,1.089) (6.147,0.923) (6.346,0.923) (6.346,0.758) (6.544,0.758) (6.544,0.592) (6.742,0.592) (6.742,0.426) (6.941,0.426) (6.941,0.261) (7.040,0.261) (7.040,0.095) (7.238,0.095) (7.238,-0.070)};
  \draw[cred,very thick] plot coordinates {(0.000,4.400) (1.091,4.400) (1.091,3.466) (1.884,3.466) (1.884,2.531) (2.380,2.531) (2.380,1.597) (2.578,1.597) (2.578,0.662) (2.776,0.662) (2.776,-0.272)};
  \draw[cgreen,very thick] plot coordinates {(0.000,4.400) (0.595,4.400) (0.595,3.203) (1.091,3.203) (1.091,2.006) (1.686,2.006) (1.686,0.809) (2.082,0.809) (2.082,-0.387)};
  \node[anchor=south west,color=cblue] at (0.0992,4.2780) {$\mu=2$};
  \node[anchor=south west,color=cred] at (4.1800,4.1811) {$\mu=50$};
  \node[anchor=south west,color=cgreen] at (2.2800,3.5624) {$\mu=150$};
\end{tikzpicture}

上图由下面的 TikZ 代码编译而来：

  \definecolor{cblue}{RGB}{31,119,180}
  \definecolor{cred}{RGB}{214,39,40}
  \definecolor{cgreen}{RGB}{44,160,44}
  \definecolor{corange}{RGB}{255,127,14}
  \definecolor{cpurple}{RGB}{148,103,189}
  \definecolor{cbrown}{RGB}{140,86,75}
  \definecolor{cpink}{RGB}{227,119,194}
  \definecolor{cgray}{RGB}{127,127,127}
\begin{tikzpicture}[x=1cm,y=1cm,>=stealth,line cap=round,line join=round]
  \draw[color=black!12,very thin] (0.0000,0) -- (0.0000,4.4) (0.7589,0) -- (0.7589,4.4) (2.1200,0) -- (2.1200,4.4) (3.1497,0) -- (3.1497,4.4) (4.1794,0) -- (4.1794,4.4) (5.5406,0) -- (5.5406,4.4) (6.5703,0) -- (6.5703,4.4) (7.6000,0) -- (7.6000,4.4) (0,0.2174) -- (7.6,0.2174) (0,0.4348) -- (7.6,0.4348) (0,0.6522) -- (7.6,0.6522) (0,0.8696) -- (7.6,0.8696) (0,1.0870) -- (7.6,1.0870) (0,1.3043) -- (7.6,1.3043) (0,1.5217) -- (7.6,1.5217) (0,1.7391) -- (7.6,1.7391) (0,1.9565) -- (7.6,1.9565) (0,2.1739) -- (7.6,2.1739) (0,2.3913) -- (7.6,2.3913) (0,2.6087) -- (7.6,2.6087) (0,2.8261) -- (7.6,2.8261) (0,3.0435) -- (7.6,3.0435) (0,3.2609) -- (7.6,3.2609) (0,3.4783) -- (7.6,3.4783) (0,3.6957) -- (7.6,3.6957) (0,3.9130) -- (7.6,3.9130) (0,4.1304) -- (7.6,4.1304) (0,4.3478) -- (7.6,4.3478) ;
  \draw[->,color=black!60] (0,0) -- (7.8999999999999995,0) node[below] {$\mu$};
  \draw[->,color=black!60] (0,0) -- (0,4.7) node[left] {total Newton steps};
  \draw[cblue,very thick] plot [smooth] coordinates {(0.000,3.826) (0.317,2.000) (0.633,1.326) (0.950,1.130) (1.267,0.913) (1.583,0.826) (1.900,0.652) (2.217,0.630) (2.533,0.652) (2.850,0.696) (3.167,0.500) (3.483,0.609) (3.800,0.587) (4.117,0.565) (4.433,0.522) (4.750,0.565) (5.067,0.587) (5.383,0.500) (5.700,0.348) (6.017,0.435) (6.333,0.435) (6.650,0.413) (6.967,0.413) (7.283,0.370) (7.600,0.500)};
  \fill[cblue] (0.000,3.826) circle (1.5pt);
  \fill[cblue] (0.317,2.000) circle (1.5pt);
  \fill[cblue] (0.633,1.326) circle (1.5pt);
  \fill[cblue] (0.950,1.130) circle (1.5pt);
  \fill[cblue] (1.267,0.913) circle (1.5pt);
  \fill[cblue] (1.583,0.826) circle (1.5pt);
  \fill[cblue] (1.900,0.652) circle (1.5pt);
  \fill[cblue] (2.217,0.630) circle (1.5pt);
  \fill[cblue] (2.533,0.652) circle (1.5pt);
  \fill[cblue] (2.850,0.696) circle (1.5pt);
  \fill[cblue] (3.167,0.500) circle (1.5pt);
  \fill[cblue] (3.483,0.609) circle (1.5pt);
  \fill[cblue] (3.800,0.587) circle (1.5pt);
  \fill[cblue] (4.117,0.565) circle (1.5pt);
  \fill[cblue] (4.433,0.522) circle (1.5pt);
  \fill[cblue] (4.750,0.565) circle (1.5pt);
  \fill[cblue] (5.067,0.587) circle (1.5pt);
  \fill[cblue] (5.383,0.500) circle (1.5pt);
  \fill[cblue] (5.700,0.348) circle (1.5pt);
  \fill[cblue] (6.017,0.435) circle (1.5pt);
  \fill[cblue] (6.333,0.435) circle (1.5pt);
  \fill[cblue] (6.650,0.413) circle (1.5pt);
  \fill[cblue] (6.967,0.413) circle (1.5pt);
  \fill[cblue] (7.283,0.370) circle (1.5pt);
  \fill[cblue] (7.600,0.500) circle (1.5pt);
  \node[below,color=black!60] at (0.0000,0) {1.2};
  \node[below,color=black!60] at (0.7589,0) {2};
  \node[below,color=black!60] at (2.1200,0) {5};
  \node[below,color=black!60] at (3.1497,0) {10};
  \node[below,color=black!60] at (4.1794,0) {20};
  \node[below,color=black!60] at (5.5406,0) {50};
  \node[below,color=black!60] at (6.5703,0) {100};
  \node[below,color=black!60] at (7.6000,0) {200};
  \node[left,color=black!60] at (0,0.2174) {10};
  \node[left,color=black!60] at (0,0.6522) {30};
  \node[left,color=black!60] at (0,1.0870) {50};
  \node[left,color=black!60] at (0,1.5217) {70};
  \node[left,color=black!60] at (0,1.9565) {90};
  \node[left,color=black!60] at (0,2.3913) {110};
  \node[left,color=black!60] at (0,2.8261) {130};
  \node[left,color=black!60] at (0,3.2609) {150};
  \node[left,color=black!60] at (0,3.6957) {170};
  \node[left,color=black!60] at (0,4.1304) {190};
\end{tikzpicture}

一族 SDP

考察障碍方法性能随问题维数的变化，考虑形如

$$\mathrm{minimize}{\mathbf{1}}^{\mathrm{\top }}x\mathrm{subject}\mathrm{to}A+\mathrm{diag}(x)⪰0$$

的一族 SDP（变量 $x\in {\mathbf{R}}^n$，$A\in {\mathbf{S}}^n$ 随机生成并归一化为谱范数 1）。算法参数：$\mu =20$，中心点步用 $\alpha =0.01$、$\beta =0.5$ 与终止准则 $\lambda (x{)}^2/2⩽{10}^{-5}$；初始点在中心路径上（$t^{(0)}=1$，间隙 $n$）；终止于初始对偶间隙缩小 8000 倍（即三次外层迭代）。

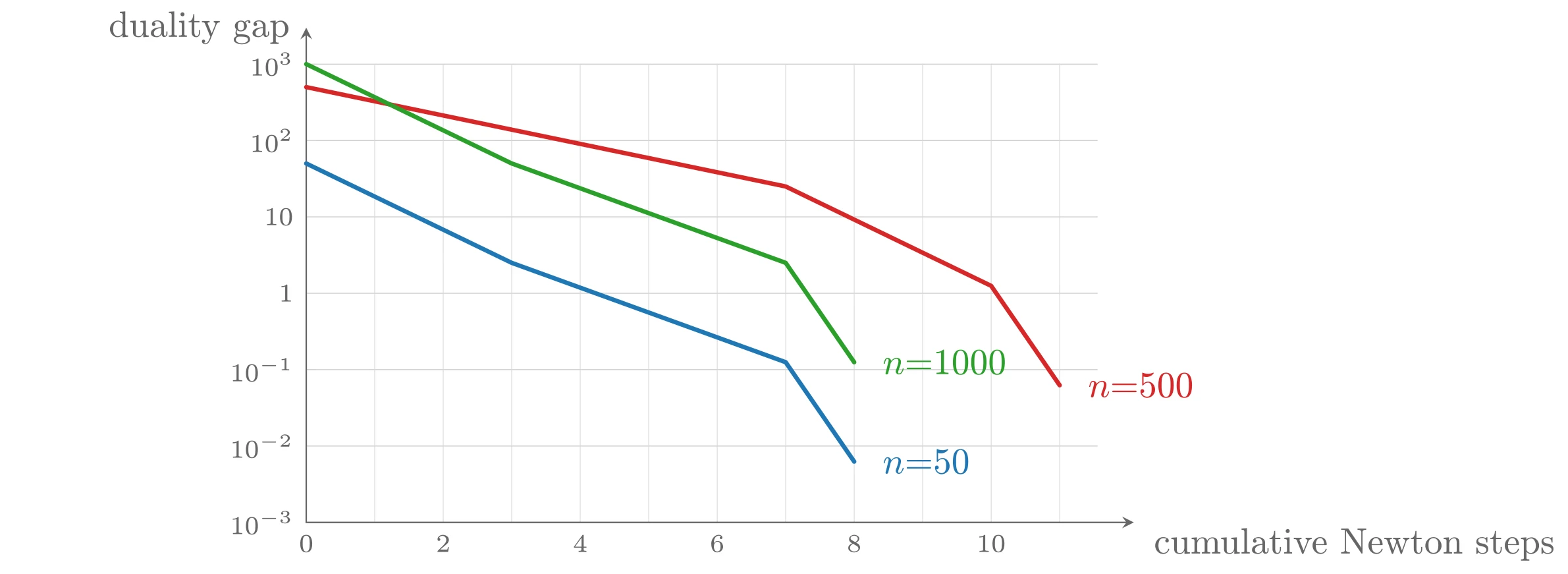

$n=50$、$n=500$、$n=1000$ 三个实例的曲线与 LP 的非常相似。对 20 个 $n$ 值（从 10 到 1000）各 100 个实例共 2000 个问题的统计表明：所需 Newton 步数随问题维数增大 100 倍只从约 20 增长到约 26——与 LP 的情形非常相像。

上图由下面的 TikZ 代码编译而来：

  \definecolor{cblue}{RGB}{31,119,180}
  \definecolor{cred}{RGB}{214,39,40}
  \definecolor{cgreen}{RGB}{44,160,44}
  \definecolor{corange}{RGB}{255,127,14}
  \definecolor{cpurple}{RGB}{148,103,189}
  \definecolor{cbrown}{RGB}{140,86,75}
  \definecolor{cpink}{RGB}{227,119,194}
  \definecolor{cgray}{RGB}{127,127,127}
\begin{tikzpicture}[x=1cm,y=1cm,>=stealth,line cap=round,line join=round]
  \draw[color=black!25,very thin] (0.0000,0.0000) -- (7.6000,0.0000) (0.0000,0.7333) -- (7.6000,0.7333) (0.0000,1.4667) -- (7.6000,1.4667) (0.0000,2.2000) -- (7.6000,2.2000) (0.0000,2.9333) -- (7.6000,2.9333) (0.0000,3.6667) -- (7.6000,3.6667) (0.0000,4.4000) -- (7.6000,4.4000);
  \draw[color=black!15,very thin] (0.0000,0.0000) -- (0.0000,4.4000) (0.6580,0.0000) -- (0.6580,4.4000) (1.3160,0.0000) -- (1.3160,4.4000) (1.9740,0.0000) -- (1.9740,4.4000) (2.6320,0.0000) -- (2.6320,4.4000) (3.2900,0.0000) -- (3.2900,4.4000) (3.9481,0.0000) -- (3.9481,4.4000) (4.6061,0.0000) -- (4.6061,4.4000) (5.2641,0.0000) -- (5.2641,4.4000) (5.9221,0.0000) -- (5.9221,4.4000) (6.5801,0.0000) -- (6.5801,4.4000) (7.2381,0.0000) -- (7.2381,4.4000);
  \draw[->,color=black!60] (0.0000,0.0000) -- (7.9500,0.0000) node[anchor=west,xshift=2pt,yshift=-6pt] {cumulative Newton steps};
  \draw[->,color=black!60] (0.0000,0.0000) -- (0.0000,4.7500) node[left=1pt] {duality gap};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,0.0000) {$10^{-3}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,0.7333) {$10^{-2}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,1.4667) {$10^{-1}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,2.2000) {1};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,2.9333) {$10$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,3.6667) {$10^{2}$};
  \node[left,font=\scriptsize,color=black!60] at (0.0000,4.4000) {$10^{3}$};
  \node[below,font=\scriptsize,color=black!60] at (0.0000,0.0000) {0};
  \node[below,font=\scriptsize,color=black!60] at (1.3160,0.0000) {2};
  \node[below,font=\scriptsize,color=black!60] at (2.6320,0.0000) {4};
  \node[below,font=\scriptsize,color=black!60] at (3.9481,0.0000) {6};
  \node[below,font=\scriptsize,color=black!60] at (5.2641,0.0000) {8};
  \node[below,font=\scriptsize,color=black!60] at (6.5801,0.0000) {10};
  \draw[cblue,very thick] plot coordinates {(0.000,3.446) (1.974,2.492) (4.606,1.538) (5.264,0.584)};
  \node[anchor=west,color=cblue] at (5.4141,0.5836) {$n{=}50$};
  \draw[cred,very thick] plot coordinates {(0.000,4.179) (4.606,3.225) (6.580,2.271) (7.238,1.317)};
  \node[anchor=west,color=cred] at (7.3881,1.3170) {$n{=}500$};
  \draw[cgreen,very thick] plot coordinates {(0.000,4.400) (1.974,3.446) (4.606,2.492) (5.264,1.538)};
  \node[anchor=west,color=cgreen] at (5.4141,1.5377) {$n{=}1000$};
\end{tikzpicture}

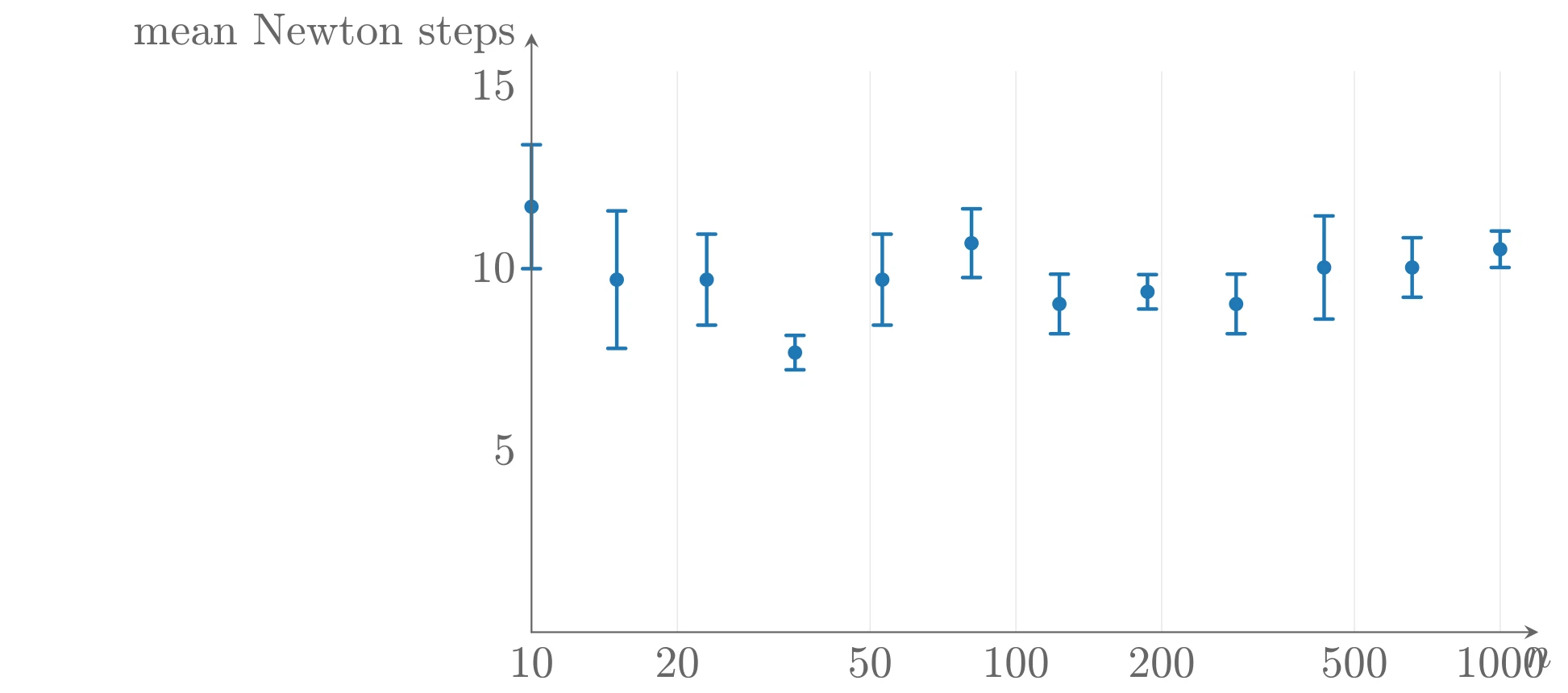

上图由下面的 TikZ 代码编译而来：

  \definecolor{cblue}{RGB}{31,119,180}
  \definecolor{cred}{RGB}{214,39,40}
  \definecolor{cgreen}{RGB}{44,160,44}
  \definecolor{corange}{RGB}{255,127,14}
  \definecolor{cpurple}{RGB}{148,103,189}
  \definecolor{cbrown}{RGB}{140,86,75}
  \definecolor{cpink}{RGB}{227,119,194}
  \definecolor{cgray}{RGB}{127,127,127}
\begin{tikzpicture}[x=1cm,y=1cm,>=stealth,line cap=round,line join=round]
  \draw[color=black!12,very thin] (0.0000,0) -- (0.0000,4.4) (1.1439,0) -- (1.1439,4.4) (2.6561,0) -- (2.6561,4.4) (3.8000,0) -- (3.8000,4.4) (4.9439,0) -- (4.9439,4.4) (6.4561,0) -- (6.4561,4.4) (7.6000,0) -- (7.6000,4.4) ;
  \draw[cblue,thick] (0.0000,2.8530) -- (0.0000,3.8261);
  \draw[cblue,thick] (-0.0700,2.8530) -- (0.0700,2.8530);
  \draw[cblue,thick] (-0.0700,3.8261) -- (0.0700,3.8261);
  \fill[cblue] (0.0000,3.3396) circle (1.6pt);
  \draw[cblue,thick] (0.6691,2.2273) -- (0.6691,3.3068);
  \draw[cblue,thick] (0.5991,2.2273) -- (0.7391,2.2273);
  \draw[cblue,thick] (0.5991,3.3068) -- (0.7391,3.3068);
  \fill[cblue] (0.6691,2.7671) circle (1.6pt);
  \draw[cblue,thick] (1.3746,2.4100) -- (1.3746,3.1241);
  \draw[cblue,thick] (1.3046,2.4100) -- (1.4446,2.4100);
  \draw[cblue,thick] (1.3046,3.1241) -- (1.4446,3.1241);
  \fill[cblue] (1.3746,2.7671) circle (1.6pt);
  \draw[cblue,thick] (2.0675,2.0596) -- (2.0675,2.3295);
  \draw[cblue,thick] (1.9975,2.0596) -- (2.1375,2.0596);
  \draw[cblue,thick] (1.9975,2.3295) -- (2.1375,2.3295);
  \fill[cblue] (2.0675,2.1946) circle (1.6pt);
  \draw[cblue,thick] (2.7522,2.4100) -- (2.7522,3.1241);
  \draw[cblue,thick] (2.6822,2.4100) -- (2.8222,2.4100);
  \draw[cblue,thick] (2.6822,3.1241) -- (2.8222,3.1241);
  \fill[cblue] (2.7522,2.7671) circle (1.6pt);
  \draw[cblue,thick] (3.4522,2.7834) -- (3.4522,3.3232);
  \draw[cblue,thick] (3.3822,2.7834) -- (3.5222,2.7834);
  \draw[cblue,thick] (3.3822,3.3232) -- (3.5222,3.3232);
  \fill[cblue] (3.4522,3.0533) circle (1.6pt);
  \draw[cblue,thick] (4.1416,2.3425) -- (4.1416,2.8100);
  \draw[cblue,thick] (4.0716,2.3425) -- (4.2116,2.3425);
  \draw[cblue,thick] (4.0716,2.8100) -- (4.2116,2.8100);
  \fill[cblue] (4.1416,2.5762) circle (1.6pt);
  \draw[cblue,thick] (4.8330,2.5367) -- (4.8330,2.8066);
  \draw[cblue,thick] (4.7630,2.5367) -- (4.9030,2.5367);
  \draw[cblue,thick] (4.7630,2.8066) -- (4.9030,2.8066);
  \fill[cblue] (4.8330,2.6716) circle (1.6pt);
  \draw[cblue,thick] (5.5284,2.3425) -- (5.5284,2.8100);
  \draw[cblue,thick] (5.4584,2.3425) -- (5.5984,2.3425);
  \draw[cblue,thick] (5.4584,2.8100) -- (5.5984,2.8100);
  \fill[cblue] (5.5284,2.5762) circle (1.6pt);
  \draw[cblue,thick] (6.2187,2.4577) -- (6.2187,3.2673);
  \draw[cblue,thick] (6.1487,2.4577) -- (6.2887,2.4577);
  \draw[cblue,thick] (6.1487,3.2673) -- (6.2887,3.2673);
  \fill[cblue] (6.2187,2.8625) circle (1.6pt);
  \draw[cblue,thick] (6.9093,2.6288) -- (6.9093,3.0962);
  \draw[cblue,thick] (6.8393,2.6288) -- (6.9793,2.6288);
  \draw[cblue,thick] (6.8393,3.0962) -- (6.9793,3.0962);
  \fill[cblue] (6.9093,2.8625) circle (1.6pt);
  \draw[cblue,thick] (7.6000,2.8625) -- (7.6000,3.1487);
  \draw[cblue,thick] (7.5300,2.8625) -- (7.6700,2.8625);
  \draw[cblue,thick] (7.5300,3.1487) -- (7.6700,3.1487);
  \fill[cblue] (7.6000,3.0056) circle (1.6pt);
  \draw[->,color=black!60] (0,0) -- (7.8999999999999995,0) node[below] {$n$};
  \draw[->,color=black!60] (0,0) -- (0,4.7) node[left] {mean Newton steps};
  \node[below,color=black!60] at (0.0000,0) {10};
  \node[below,color=black!60] at (1.1439,0) {20};
  \node[below,color=black!60] at (2.6561,0) {50};
  \node[below,color=black!60] at (3.8000,0) {100};
  \node[below,color=black!60] at (4.9439,0) {200};
  \node[below,color=black!60] at (6.4561,0) {500};
  \node[below,color=black!60] at (7.6000,0) {1000};
  \node[left,color=black!60] at (0,1.4312) {5};
  \node[left,color=black!60] at (0,2.8625) {10};
  \node[left,color=black!60] at (0,4.2937) {15};
\end{tikzpicture}

基于自和谐的复杂度分析

本节把障碍方法（对普通不等式）的复杂度分析推广到广义不等式问题。外层迭代次数已经知道是

$$\lceil \frac{\log (\theta /t^{(0)}ϵ)}{\log \mu }\rceil$$

外加一次初始中心点步。剩下的是估计每个中心点步所需的 Newton 步数，这要用到自和谐函数的 Newton 方法复杂度理论。为简单起见，不计初始中心点的代价。

做与标量情形相同的假设：$t{f}_0+\varphi$ 对所有 $t⩾t^{(0)}$ 闭且自和谐，且问题的下水平集有界。

例子：二阶锥规划​。函数

$$-\psi (x)=-\log (x_{p+1}^2-\sum _{i=1}^p{x}_i^2)$$

自和谐（见自和谐一章的例子），因此 SOCP 的对数障碍函数满足闭性与自和谐性假设。

例子：半定规划​。用 $\log detX$ 作为半正定锥的广义对数，自和谐假设对一般的半定规划成立。例如，对标准形式 SDP

$$\mathrm{minimize}\mathrm{tr}(CX)\mathrm{subject}\mathrm{to}\mathrm{tr}(A_{i}X)=b_i,i=1,\cdots ,p,X⪰0$$

（变量 $X\in {\mathbf{S}}^n$），函数 $t^{(0)}\mathrm{tr}(CX)-\log detX$ 对任意 $t^{(0)}⩾0$ 都自和谐（且闭）。

与标量情形完全一样，可以证明

$$\mu t{f}_0(x^{\star }(t))+\varphi (x^{\star }(t))-\mu t{f}_0(x^{\star }(\mu t))-\varphi (x^{\star }(\mu t))⩽\theta (\mu -1-\log \mu )$$

因此当自和谐与有界下水平集条件成立时，每个中心点步所需 Newton 步数不超过

$$\frac{\theta (\mu -1-\log \mu )}{\gamma }+c$$

与普通不等式的障碍方法完全一样。一旦建立了这个基本界，广义不等式问题的复杂度分析与普通不等式情形完全相同，唯一的例外是：$\theta$（各锥的广义对数次数之和）代替了不等式个数。

对偶锥的广义对数

我们将用共轭函数证明上述界。设 $\psi$ 是正常锥 $K$ 的广义对数，次数为 $\theta$。（凸）函数 $-\psi$ 的共轭为

$$(-\psi {)}^{\ast }(v)=\underset{u}{sup}(v^{\mathrm{\top }}u+\psi (u))$$

该函数是凸的，定义域为 $-K^{\ast }=\{v\mid v{\prec }_{K^{\ast }}0\}$。定义

$$\overline{\psi }(v)=-(-\psi {)}^{\ast }(-v)=\underset{u}{inf}(v^{\mathrm{\top }}u-\psi (u)),\mathrm{dom}\overline{\psi }=\mathrm{int}{K}^{\ast }$$

$\overline{\psi }$ 是凹的，而且实际上是对偶锥 $K^{\ast }$ 的广义对数，次数同为 $\theta$（见教材习题 11.17）。我们称 $\overline{\psi }$ 为与广义对数 $\psi$ 相关联的对偶对数​（dual logarithm）。

由上式可以得到不等式

$$\overline{\psi }(v)+\psi (u)⩽u^{\mathrm{\top }}v$$

它对任意 $u{\succ }_{K}0$、$v{\succ }_{K^{\ast }}0$ 成立（这是广义对数版本的 Fenchel 不等式）。由此出发，仿照标量情形的推导（利用各中心点的对偶可行性以及对偶间隙 $\theta /t$ 的表达式），即可建立基本界并完成复杂度分析。
